Vertical Bead Mill

• Vertical bead mill is a kind of efficient wet grinding and dispersing equipment, which is widely used n industrial fields such as paint and coating, cosmetic raw materials, food, daily chemicals, dyestuffs, inks, pharmaceuticals, pesticides, magnetic recording materials, ferrites and so on. It has the advantages of high production efficiency, strong continuity, low cost, and easy to clean and change the color, easy to operate, smooth operation, and adapt to continuous grinding operation.
• ◆   High energy density mill
• ◆   Internal media recirculation
• ◆   High flow rate product recirculation
• ◆   Discrete pass option
• ◆   Full production size mill ( = 6 times smaller than conventional mill)
• ◆   Frequency inverter drive
• ◆   PLC – based automation package
•

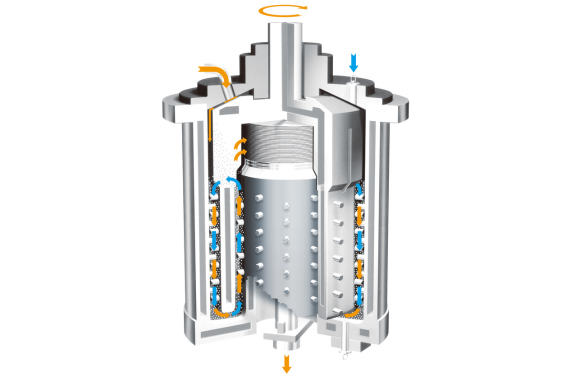

Design Features of Vertical Bead Mill

•
• ◆  Product inlet from the top
• ◆  Outer plus inner peg milling annulus
• ◆  Power input by forced displacement of media in the range 0,2 – 1,5 mm
• ◆  Predispersing zone
• ◆  Internal media recirculation
• ◆  Media separation by centrifuging
• ◆  High efficiency cooling of rotor, outer and inner stator + bottom
• ◆  Product discharge through removable protection screen on top of inner stator
• ◆  Removal of protection screen without draining mill
•


Vertical Bead Mill Advantage

• ◆  For difficult grinding tasks in recirculation mode
• ◆  Achievable particle size in the nano meter range
• ◆  For low to medium product viscosity up to 1000 mPa·s at working conditions
• ◆  Small grinding chamber volume
• ◆  Min. product loss during product change
• ◆  Perfect scalability with constant power density and specific cooling surface area due to annular geometry
•

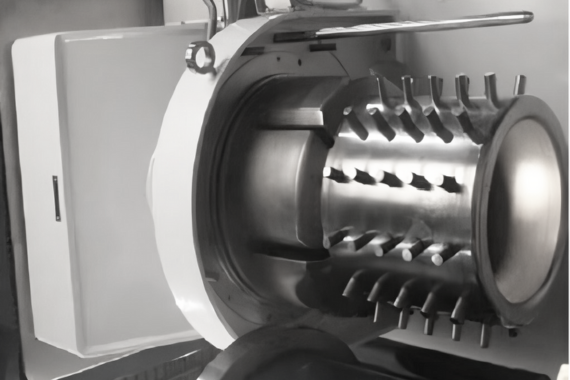

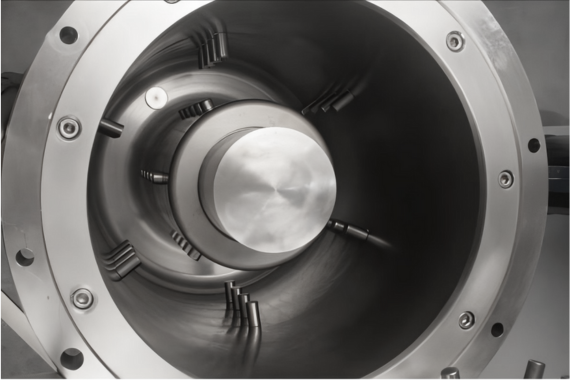

Features of Mill Chamber

• ◆  Outer + inner stator pegged
• ◆  Outer + inner stator cooled
• ◆  Cooled bottom
• ◆  Discharge screen in center
• ◆  Exchangeable liners
•


Professional Vertical Bead Mill Manufacturer - Tonghui

• Tonghui is a professional manufacturer of vertical bead mill, which provides high quality equipment and service to high-end customers with its profound accumulation in the field of wet grinding technology. Vertical bead mills are known for their efficient grinding efficiency and large production capacity, especially for large-scale continuous production environments. This model is designed to handle materials with high moisture content, making it widely used in industries such as ceramics and ink.
•

• Tonghui’s vertical bead mills utilize advanced grinding technologies such as the ultrasonic field rod and pin design, which not only improves grinding efficiency, but also improves material encapsulation modification, resulting in good particle sphericity, low energy consumption, intelligent and easy to operate, and a cleaning-free, easy-to-maintain machine. These features make Tonghui’s vertical bead mills excel in handling fine grinding needs, providing products with uniform particle size distribution and high fineness.
•


• ◆  he model is simple, easy to master, and all the maintenance can becompleted quickly and easily.
• ◆  lt is very easy to add grinding media from the filling hole above.
• ◆  Do not discharge and grind the media, but the protective screen can betaken out of the closed mill.
• ◆  Minimal cleaning fluid is required for replacement of the product.
• ◆  Minimum time and cleaning are required for replacement of grinding media.
• ◆  lt is very simple to make the grinding chamber decline by an integrallifting device.
• ◆  The grinding chamber can drop and rotate along the pivot.
•

• Wide Application

1. ◆  High-quality color filter of TFT screen and PLC display screen.
2. ◆  More glorious car paint, high solids and water-based products.
3. ◆  Heavy coatings with higher resistance.
4. ◆  Nano-level grinding of photosensitive pigment makes it more brilliant,eye-catching.
5. ◆  In the production of high-quality dyeing paint, the enhanced colorstrength can lead to more economic benefits.
6. ◆  High-quality packaging and silver ink with more gloss and transparency.
7. ◆  Super inkjet products with higher quality.

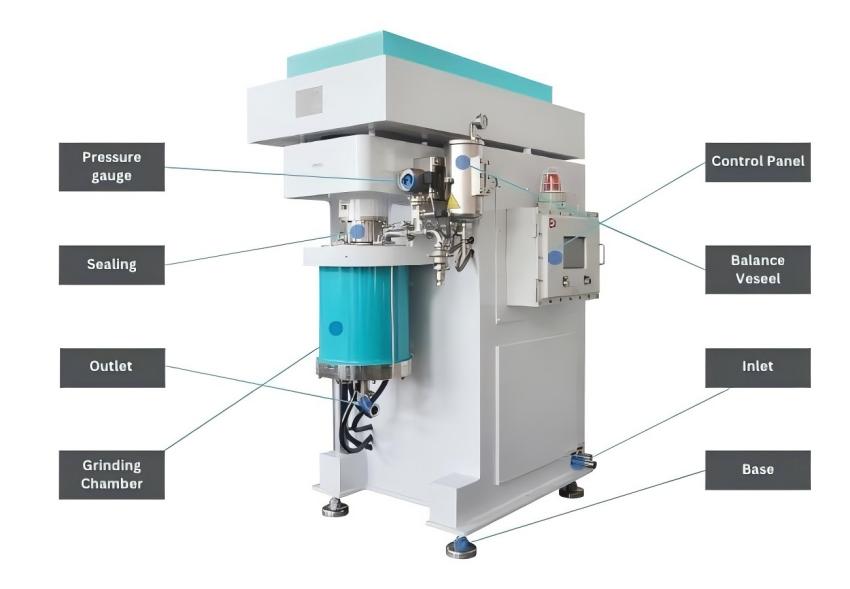

Machine Characteristic Structure

•

• Data Sheet
