• CDP Wet bead mill is widely used in all kinds of fluid material, its wet grinding milling technology apply for inks, paints, nano materials, etc.

Feature:

• ◆  Grinding fineness:75nm-15um
• ◆  Viscosity: below 20000cps
• ◆  Solvent system: water-based, solvent-based are applicable
• ◆  Machine capacity: 60L-1500L/h, according to the actual production demand selection
• ◆  Zirconia beads particle size: zirconium content >95% pure zirconia beads grinding beads particle size of 0.1-1.0mm can be chosen.
• ◆  Optional materials: high wear-resistant alloy steel, silicon carbide, zirconia, polyurethane, tungsten carbide.

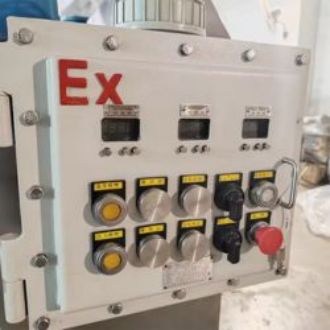

• ◆  Electric control system: optional explosion-proof/non-explosion-proof configuration with on-site operation panel (touch screen/inverter infinitely variable speed control is optional).
•


General Description

• This rod pin bead mill is a nano-scale wet grinding equipment, adopting closed continuous working mode, compared with ordinary grinding equipment, it has the advantages of 2~3 times grinding efficiency, nano-scale fineness, grinding medium and high-viscosity materials, and better abrasion resistance. The equipment is widely used in coating, ink, pigment, color paste, cosmetics, pesticide, medicine and other industries, simple operation, safe and reliable, easy to clean and maintain.
•

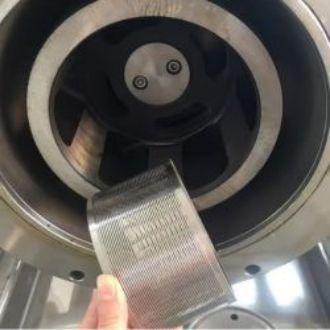

• ◆  The new design of the static centrifugal separation device with large flow and material flow smoothly.
• ◆  Could use the qrinding media above 0.1mm.
• ◆  Using the rotor and cylinder arangement with standards of golden section ratioit can efectively reduce wear and tear, increase energy eficieny, and achieve the best effect.
• ◆  More optimized desian of the whole machine to make more reliable of the overall stability of the equipment.
• ◆  Ensure the stability of eauipment operation with parts of high precision machining and exquisite assembly process.
• ◆  Material ouality , according to diferent oroducts, you can choose silicon carbide,siicon nitide, zirconium oxide, poyurethane, hard aloy and other materials.

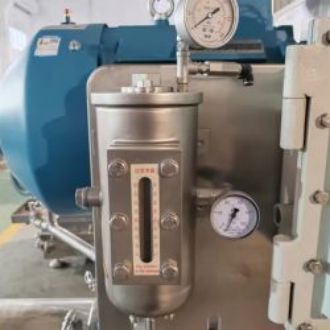

• cMultiple cooling mode, can effectively reduce the heat produced by grinding.

Wide Application

• ◆  Energy: all kinds of battery paste, paste (lithium batteries, nickel-chromium batteries, nickel-metal hydride batteries, fuel cells, power batteries, etc.);
• ◆  Electronics and electrical appliances: solder tone, ceramic paste, magnetic materials, silicone ink, electronic adhesives, pvc plastic, electronic and electrical parts potting adhesive, hot melt adhesive, a variety of precious metal powder, paste;
• ◆  Chemicals: all kinds of sealant, adhesive, synthetic resin rubber, ink, putty, abrasive (paste), wax products, synthetic rubber, synthetic resin, a variety of powder materials, ceramic pigments;
• ◆  Cosmetics/daily chemicals: moisturizer, lipstick, lipstick, lotion, gel, mask, mascara, foundation, nail polish, toothpaste, soap;
• ◆  Boehmite (flame retardant, new energy battery diaphragm coating, polishing abrasives, copper cladding board, lithium battery pole coating, etc.)
•


Machine Characteristic Ginding Options

•

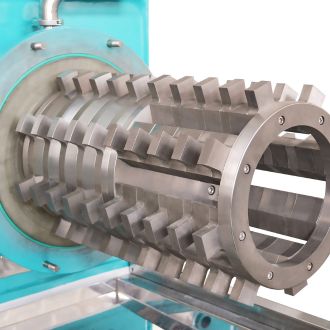

• alloy steel rotor
•

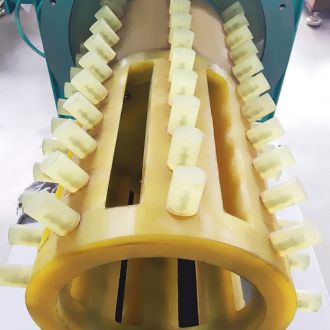

• PU rotor
•

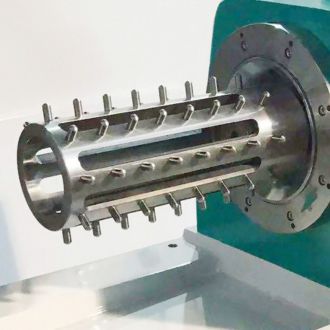

• stainless steel Rotor
•

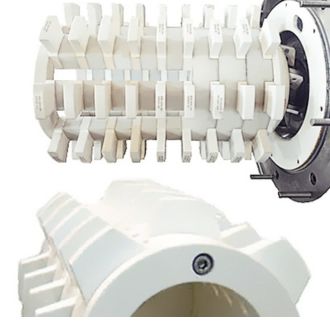

• Zirconia rotor

• When choosing the material of rod and pin bead mill, you need to consider the characteristics of the material, grinding requirements, cost, environmental protection and equipment compatibility to ensure the best grinding effect and stable operation of the equipment.

Grinding cylinder material: the grinding cylinder is usually made of stainless steel, but stainless steel is also divided into a variety of specific materials need to be determined according to customer requirements.

Rotor material: the rotor material of rod and pin type sand mill usually has tungsten carbide, polyurethane, zirconium oxide, silicon carbide, silicon nitride and so on.

Grinding media material: the material of grinding media directly affects its hardness, density, wear resistance and chemical stability and other properties, common grinding media materials include glass beads, ceramic beads (such as zirconium silicate beads, rare-earth zirconium oxide beads, alumina beads, etc.), steel beads and so on.

Other materials: for some special requirements of the grinding process, may also choose other special materials, for example, in the grinding of products sensitive to metal contamination, you can choose tungsten carbide steel, silicon carbide material to avoid metal contamination.

Separation system material: The separation system is usually made of wear-resistant materials to ensure long-term stability and separation efficiency.

Cooling system material: The cooling system may be made of special materials to ensure good heat exchange efficiency and corrosion resistance.
