This CDP agitator bead mill is designed for small batch production, with high efficiency and in good bead mill price.

Feature:

• ◆  Grinding fineness:75nm-15m
• ◆  Viscosity: below 20000cps
• ◆  Solvent system: water-based, solvent-based are applicable
• ◆  Machine capacity: 10L-200L/h, according to the actual production demand selection
• ◆  Zirconia beads particle size: zirconium content >95% pure zirconia beads grinding beads particle size of 0.2-1.0mm can be chosen.
• ◆  Optional materials: high wear-resistant alloy steel, silicon carbide, zirconia, polyurethane, tungsten carbide.
• ◆  Electric control system: optional explosion-proof/non-explosion-proof configuration with on-site operation panel (touch screen/inverter infinitely variable speed control is optional).
•


General Description

CDP agitator bead mill adopted advanced design standards with ample flow, good temperature controlling ability and energy transformation ratio to achieve the narrow degree of grain size distribution range of nanometer grade.
CDP agitator bead mill have widely used in ceramics, ink, color filter separating agents, functional ceramic, lithium battery materials, thermal paper,electronic slurry, nano paste, pesticides and other fields of nano grinding.

• ◆  High Efficiency: It can quickly achieve nanoscale grinding effect and the grinding efficiency has been increased by 140%-150% compared with that of the traditional models.
• ◆  Uniform particle size: The particle size of the ground material is more uniform, which is conducive to improving the quality of the product.
• ◆  Nanoscale grinding technology: Adopting nanoscale grinding technology, it can carry out fine grinding at microscopic level on the surface of the coating to ensure the flatness and smoothness of the coating and make the product more exquisite.
• ◆  Intelligent operation: Equipped with an intelligent control system, it realizes automatic operation, improves production efficiency and reduces labor cost.
• ◆  Tability and durability:  The double-face mechanical seal enhances the durability of the equipment and reduces the risk of leakage.
•


Wide Application

• ◆  Energy: all kinds of battery paste, paste (lithium batteries, nickel-chromium batteries, nickel-metal hydride batteries, fuel cells, power batteries, etc.);
• ◆  Electronics and electrical appliances: solder tone, ceramic paste, magnetic materials, silicone ink, electronic adhesives, pvc plastic, electronic and electrical parts potting adhesive, hot melt adhesive, a variety of precious metal powder, paste;
• ◆  Chemicals: all kinds of sealant, adhesive, synthetic resin rubber, ink, putty, abrasive (paste), wax products, synthetic rubber, synthetic resin, a variety of powder materials, ceramic pigments;
• ◆  Cosmetics/daily chemicals: moisturizer, lipstick, lipstick, lotion, gel, mask, mascara, foundation, nail polish, toothpaste, soap;
• ◆  Boehmite (flame retardant, new energy battery diaphragm coating, polishing abrasives, copper cladding board, lithium battery pole coating, etc.)
•


Machine Characteristic Working Principle

• Agitator bead mill operate on the principle of impact and shear forces generated by the movement of beads within the grinding chamber. The process involves:
• Feeding: The material to be ground is introduced into the mill along with the grinding media.

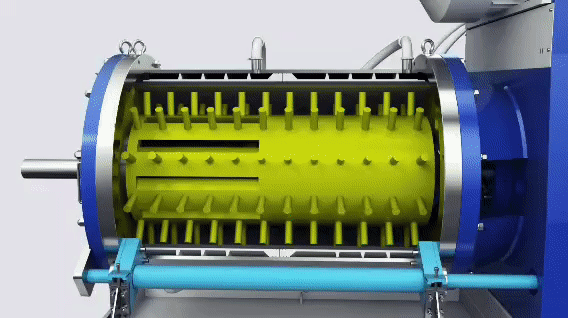

• Agitation: A rotating agitator (such as pins or discs) stirs the mixture, causing the beads to collide with each other and with the material, leading to size reduction.
• Separation: After grinding, a separation mechanism retains the beads while allowing the milled product to exit through a sieve or screen.
•

•

Data Sheet

Galley

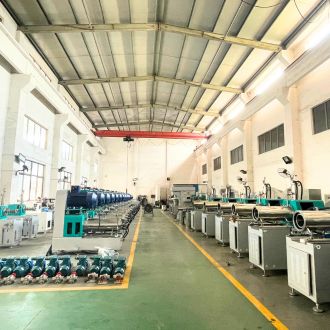

production factory

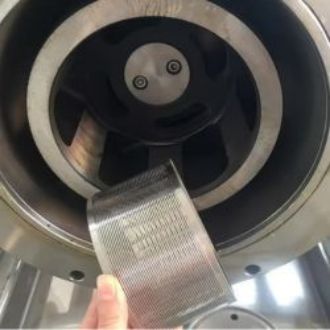

screen

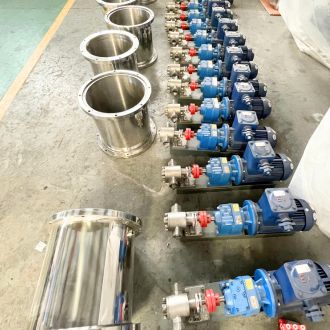

bead mill parts

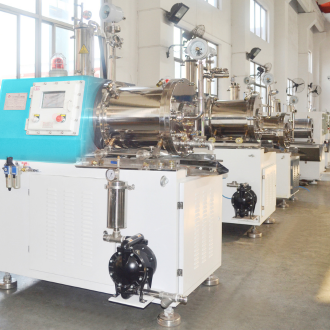

bead mill installation
