The CDS agitator bead mill has a stronger power motor, material milled by bead, and disc in the chamber.

Feature:

• ◆  Grinding fineness:75nm-15um
• ◆  Viscosity: below 40000cps
• ◆  Water-based, solvent-based are applicable
• ◆  Capacity: 20L-1500L/h, according to the actual production demand
• ◆  Zirconia beads particle size: zirconium content >95% pure zirconia beads grinding beads particle size of 0.2-1.0mm can be chosen.
• ◆  Optional materials: high wear-resistant alloy steel, silicon carbide, zirconia, polyurethane, tungsten carbide.
• ◆  Electric control system: optional explosion-proof/non-explosion-proof configuration with on-site operation panel (touch screen/inverter infinitely variable speed control is optional).
•


General Description

• CDS agitator bead mill equiped with the grinding dics which can meet the needs of micro level particle grinding and large-volume continuous production, the use of special high wear-resistant materials, long service life, strong adaptability to the viscosity of the material, easy to operate, low energy consumption ratio, high grinding efficiency. It can be equipped with explosion-proof controller components to meet the reliable explosion-proof requirements, advanced electrical control system and fault alarm device, and a variety of feeding pumps can be selected for different material production requirements, widely used in high-quality coatings, paints, inks, chemical products, etc.
•


Key Features

• ◆  Machine seal is an independent system, avoiding equipment jitter and spindle torque changes on the seal;
• ◆  Machine seal selection of fixed outflow type, the benchmark is designed in the internal seal, to avoid contaminating the coolant and so on.
• ◆  High-efficiency grinding discs and oversized centrifugal wheels and discharge screens enable better distribution of grinding beads in the grinding chamber, utilizing centrifugal dynamic separating screens to improve the flow rate.
• The grinding beads can be safely separated, and the high-efficiency separating system plays a very good role when the flow rate is high.
• ◆  Cylinder infusion channel is precisely calculated, cooling no dead angle, cooling sufficient; pulley selection of high conductivity material, the temperature will not be transmitted to the material;
• ◆  Pressure balance tank, end cover and other multiple cooling.
• ◆  New disc type grinding structure with the material and the grinding media mixture occurs efficient relative motion, the material solid particles are effectively dispersed, shear grinding, the final product is obtained after the dynamic high-flow rotor slit separation filter.

Wide Application

• ◆  Paint & Coating: Mix the paint finely and evenly, improve the color quality, make the paint apply smoother, cover better and last longer.
• ◆  Leather slurry: In leather slurry to improve the quality and feel of leather.
• ◆  Adhesives & Silicone Sealants: Ensuring bond strength and uniformity in adhesives, suitable for the production of all types of adhesives and sealants.
• ◆  Ink: Ink production to achieve fine dispersion of pigments and linkers, to ensure the printing quality of ink, improve color strength and quality.
• ◆  Agrochemicals: Used in pesticide production for uniform mixing and dispersion of active ingredients to enhance the effectiveness and safety of pesticides.
• ◆  New energy and new materials: high-performance performance of new energy materials such as lithium battery materials.
• ◆  Electronic Materials: Used in the preparation of electronic materials, such as inkjet inks and battery materials, to ensure the homogeneity and stability of the materials.
• ◆  Chemicals and Cosmetics: Used in the chemicals and cosmetics industry for wet grinding and dispersing fine pastes and emulsions.
•


Machine Characteristic Grinding Options

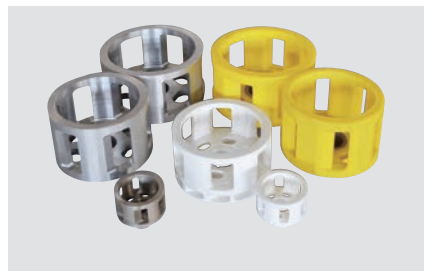

Optional various centrifugal cage

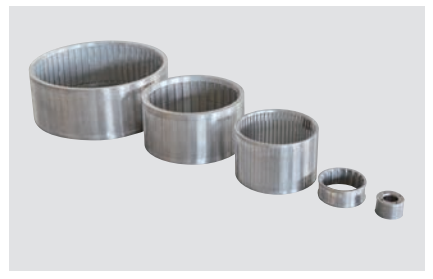

Optional various separation screen

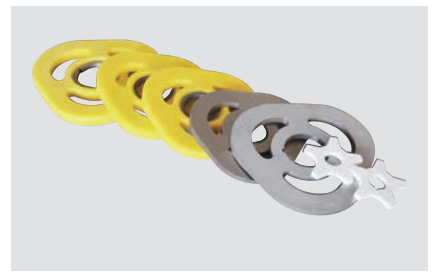

Optional various grinding disc

Data Sheet

Galley

bead mill installation

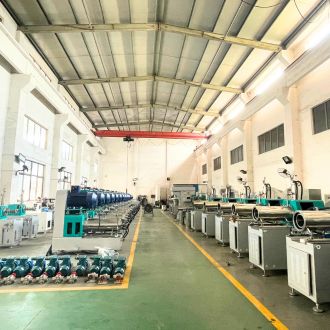

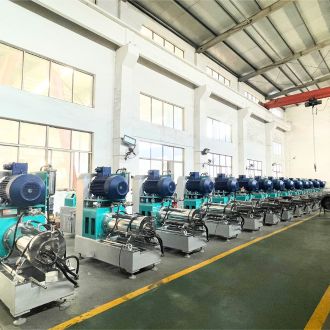

bead mill factory

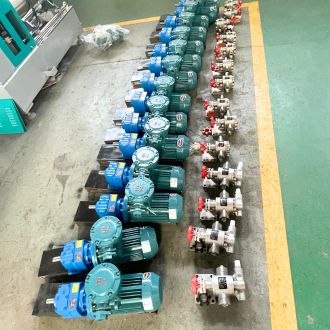

bead mill motor

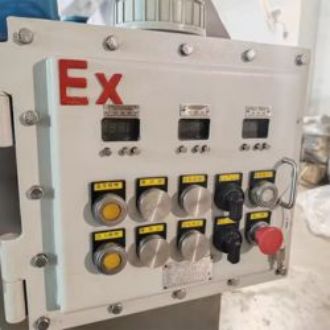

Control Panel

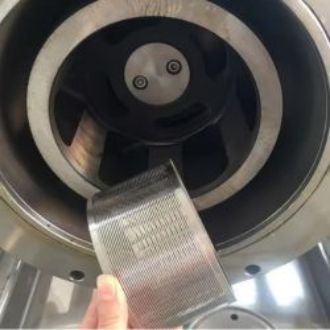

screen

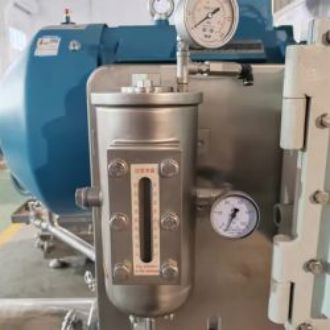

balance vessel
