Media mill is dedicated for submicro-level processing, continuous large flow with high grinding efficiency and good grinding fineness.

Feature:

• ◆    Grinding fineness:15um-500nm
• ◆    Viscosity: below 40000cps
• ◆    water-based, solvent-based are applicable
• ◆    Capacity: 20L-1500L/h, according to the actual production demand
• ◆    Zirconia beads particle size: zirconium content >95% pure zirconia beads grinding beads particle size of 0.2-1.0mm can be chosen.
• ◆    Optional materials: high wear-resistant alloy steel, silicon carbide, zirconia, polyurethane, tungsten carbide.
•


General Description

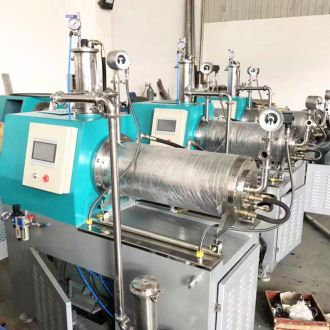

The horizontal media mill is a versatile and efficient grinding machine designed for wet milling applications. It features a horizontal grinding chamber filled with small beads that agitate and disperse materials, achieving fine particle sizes. Commonly used in industries such as paints, inks, pharmaceuticals, and food processing, it ensures uniform dispersion and high-quality results. The mill allows for easy cleaning and maintenance, making it suitable for both large-scale production and laboratory settings.

Key Features

• ◆    High-efficiency grinding: Adopting high-speed rotating dispersing disk and grinding media, it is able to realize high-efficiency material grinding and dispersing, with high grinding efficiency and fine product granularity.
• ◆    Continuous production: Designed for closed continuous production, it can run stably for a long time, suitable for large-scale industrial production with high production efficiency.
• ◆    Uniform fineness: the material is produced in closed state, which effectively prevents drying and crusting and solvent evaporation, and ensures that the fineness of the material after grinding and dispersing is uniform and the quality is stable.
• ◆    Double end-face mechanical seal: Adopting double end-face mechanical sealing system provides double protection, ensures zero leakage, and enhances the safety and reliability of the equipment.
• ◆    Wide range of application: It is suitable for a variety of industries such as paint, ink, dyestuff, medicine, pesticide, etc. It is able to deal with materials of various viscosities and has a wide range of application prospects.
•


Wide Application

• ◆    Pharmaceuticals: Used for grinding active pharmaceutical ingredients (APIs), excipients, and other raw materials.
• Food and Beverages: Employed in the processing of food ingredients such as spices, sauces, and emulsions.
• ◆    Cosmetics: Utilized for grinding and mixing various cosmetic ingredients, including pigments, oils, and emulsifiers.
• Paints and Coatings: Essential for milling pigments and other components to create uniform colors and finishes in paints, inks, and coatings.
• ◆    Chemicals: Applied in the chemical industry for grinding raw materials used in the production of adhesives, sealants, and other chemical formulations.
• ◆    Agrochemicals: Used for processing pesticides and her bicides
• ◆    Plastics: Employed in the production of plastic compounds
•


Machine Characteristic Grinding Options

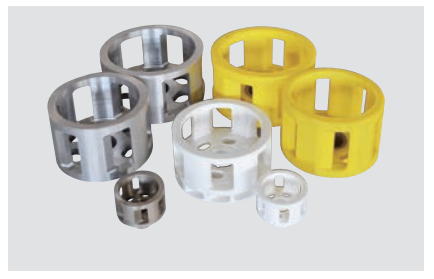

• Optional various centrifugal cage: Alloy steel, stainless steel, PU, Zirconia

• Optional various separation screen: 0.1 mm to 2.0 mm

• Optional various grinding disc: Alloy steel, stainless steel, PU, Zirconia
• Electric control system options (explosion-proof or non-explosion-proof)

• ◆    operation panel
• ◆    motor
• ◆    electrical cabinet
• ◆    Gauge
•


Data Sheet

Galley
