• TN Turbine Nano Mill is a highly efficient wet ultrafine grinding equipment, which utilizes a high-speed rotating turbine disperser to generate strong shear force so as to achieve ultrafine grinding of materials.
•


• Feature:

• ◆   Grinding fineness:200nm-15um
• ◆   Viscosity: below 20000cps
• ◆   water-based, solvent-based are applicable
• ◆   Capacity: 20L-1500L/h, according to the actual production demand
• ◆   Zirconia beads particle size: zirconium content >95% pure zirconia beads grinding beads particle size of 0.2-1.0mm can be chosen.
• Optional materials: high wear-resistant alloy steel, silicon carbide, zirconia, polyurethane, tungsten carbide.
•


• General Description

•

• The horizontal media mill is a versatile and efficient grinding machine designed for wet milling applications. It features a horizontal grinding chamber filled with small beads that agitate and disperse materials, achieving fine particle sizes. Commonly used in industries such as paints, inks, pharmaceuticals, and food processing, it ensures uniform dispersion and high-quality results. The mill allows for easy cleaning and maintenance, making it suitable for both large-scale production and laboratory settings.
•

• Key Features

•
  ◆   Designed for running in single/multi-pass or circulation, with constant efficiency in both processes for the achievement of narrow particle size distributions.
• ◆   Turbine accelerator is a powerful, hydraulic movement of the beads which guarantee a high and constant energy input.
• ◆   The mill has a low energy uptake due to its efficient energy input. Ability to handle low to highly viscous products.
• ◆   ldeal cooling properties allow the processing of temperature sensitive products.
• ◆   Gentle processing as a result of hydraulic movement of the beads.
•

• Wide Application
•

• ◆   Battery industry: lithium iron phosphate cathode material;
• ◆   Digital Consumables: Digital Inkjet Inks
• ◆   Ceramic consumables: alumina, zirconia, silicon carbide
• ◆   Mineral pigments: titanium dioxide, calcium carbonate, iron oxide
• ◆   Rare earth materials: yttrium oxide, indium, cerium
• ◆   Cosmetics: pearl powder
• ◆   Pharmaceutical preparation industry, etc.
•

• Machine Characteristic Grinding Options
•

• Turbo Mill is a nano-scale all-ceramic non-polluting ultra-fine grinding equipment with advanced multi-group turbine disperser. Multi-channel kinetic energy input to achieve a very narrow particle size uniform distribution, grinding fineness can quickly reach 1UM-100NM. Sand mill disperser and shaft and other contact material part according to user requirements (zirconia ceramics, engineering polyurethane, tungsten carbide, high resistance to alloy steel and other materials), generally use zirconia ceramics. It can achieve no pollution of materials, no metal particles, no color difference.

• Electric control system options (explosion-proof or non-explosion-proof)

  • ◆   operation panel
  • ◆   motor
  • ◆   electrical cabinet
  •


  Data Sheet

  Model	Main unit power (kw)	Vessel capacity(L)	Cooling Water (L/h)
  TN-2	5.5~7.5	2	1000~1500
  TN-10	15~22	10	1500~2200
  TN-18	30~37	18	1800~2500
  TN-30	37~45	30	2500~3000
  TN-60	55~90	60	3000~4000

  Galley
•

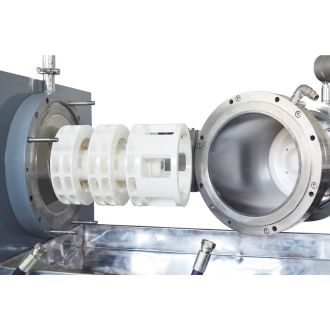

• grinding chamber
•
• Grinding system
•
• Turbo rotor
•
•

•
•

•
•

•
