  • SW Disk Bead Mill
SW Disk Bead Mill

SW Disk Bead Mill

Price (tax incl.)
Negotiable (Subject to final quotation)
  • MOQ1 Set
  • Trade typeIn stock

Suzhou Tonghui New Material Equipment Manufacturing Co., Ltd

  • The type dispersing disk is functioned by the slot hole and multiplied profiles to produce the strong bump and friction among media.

  • Feature:

  • ◆    Grinding fineness:5um~15um
  • ◆    Viscosity: below 20000cps
  • ◆    water-based, solvent-based are applicable
  • ◆    Capacity: 20L-1500L/h, according to the actual production demand
  • ◆    Zirconia beads particle size: zirconium content >95% pure zirconia beads grinding beads particle size of 0.2-1.0mm can be chosen.
  • ◆    Optional materials: high wear-resistant alloy steel, silicon carbide, zirconia, polyurethane, tungsten carbide.

  • General Description

  • This machine adopts double end face mechanical seal with reliability and durability, and is equipped with a coolant compatible with the grinding material to reduce the pollution of the grinding material. Suitable for coating, paint, ink, pesticides and other industries of material grinding, can be on the material particles of the polymerization, through the grinding of a short period of time to achieve the required fineness. Operation and use of simple, reliable, high production efficiency, can meet the needs of users.

  • Key Features

  • ◆      The stirring discs are symmetrically arranged on the stirring shaft to transfer the kinetic energy required for grinding to the grinding media to realize ultra-fine grinding of materials.
  • ◆      Disk bead mills are capable of achieving excellent grinding results and the narrowest particle size distribution.
  • ◆      The disk bead mill can be designed for different materials, such as ceramics, stainless steel, alloy steel, etc.
  • ◆      Ideal cooling performance, forced guidance of the cooling water in the outer jacket allows the processing of temperature-sensitive products.
  • ◆      The disc bead mills are available in various models with grinding chamber volumes ranging from 0.5 to 600 liters for all types of grinding media materials.
  • ◆      Uninterrupted grinding at high energy density ensures product quality and fine dispersion and grinding results.

  • Wide Application

  • ◆    Pharmaceuticals: Used for grinding active pharmaceutical ingredients (APIs), excipients, and other raw materials.
  • ◆    Food and Beverages: Employed in the processing of food ingredients such as spices, sauces, and emulsions.
  • ◆    Cosmetics: Utilized for grinding and mixing various cosmetic ingredients, including pigments, oils, and emulsifiers.
  • ◆      Paints and  Coatings: Essential for milling pigments and other components to create uniform colors and finishes in paints, inks, and coatings.
  • ◆    Chemicals: Applied in the chemical industry for grinding raw materials used in the production of adhesives, sealants, and other chemical formulations.
  • ◆    Agrochemicals: Used for processing pesticides and her bicides
  • ◆    Plastics: Employed in the production of plastic compounds

  • Machine Characteristic Grinding Options

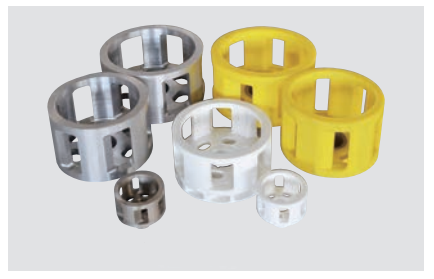

  • Optional various centrifugal cage: Alloy steel, stainless steel, PU, Zirconia

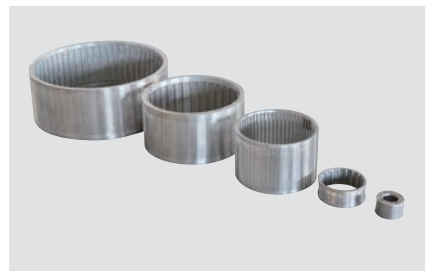

  • Optional various separation screen: 0.1 mm to 2.0 mm

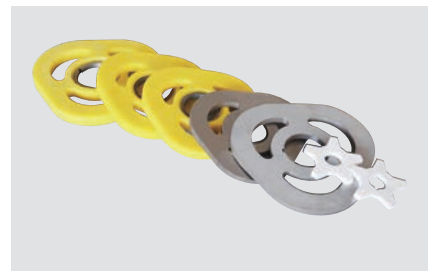

  • Optional various grinding disc: Alloy steel, stainless steel, PU, Zirconia


  • Data Sheet

  • TypeSW-5ASW-15ASW-20ASW-30ASW-50ASW-250A
    Tank capacity (L)5 15 20 30 50 250
    Motor power (kw)5.5 11 18.5 22 37 75
    Production capacity (kg/h)20~10030~20040~30050~600100~10001500~2000
    Finess(μ/m)2-202-202-202-202-202-20
    Pump typeDiaphragm pump/Gear pump

  • Galley

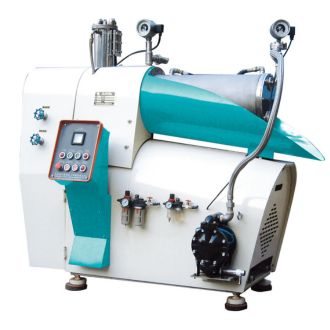

  • Disc bead mill

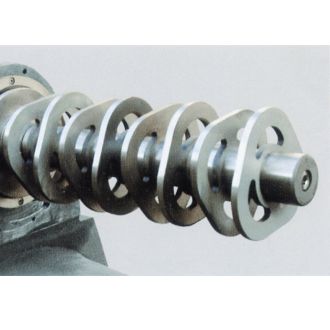

  • Dispersing disk

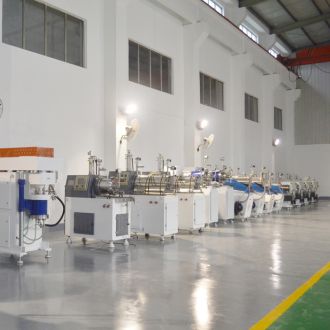

  • disk bead mill productin site

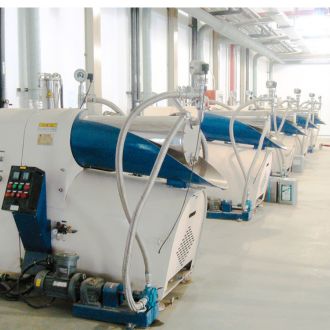

  • disk bead mill working site

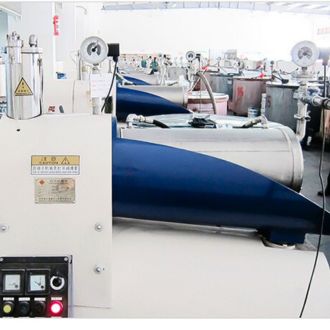

  • customer site
