• Efficient Industrial Dispersion Solutions
• High speed disperser can mix, dissolve and disperse two or more kinds of liguid and powder material.

• ◆        lt can both works singleand together with some other sand grinder.
• ◆        Suitable for producing paint, ink, coating, dyestuff, papermaking and so on in chemical industry。
• ◆        The mixers are used for wet dispersing and mixing liquid-soliomaterial.
• ◆        Non-grade speed adjustment by frequency converters
• ◆        hydraulic elevating
• ◆        working steadily, easy maintenance.
• Revolutionize your production process with our advanced high speed disperser! Tailored for manufacturers of paints, coatings, and inks, this machine delivers exceptional efficiency, consistency, and product quality. Whether you’re dispersing pigments, blending resins, or homogenizing formulations, our disperser provides a powerful industrial solution.
•

• High Speed Disperser Key Features

•

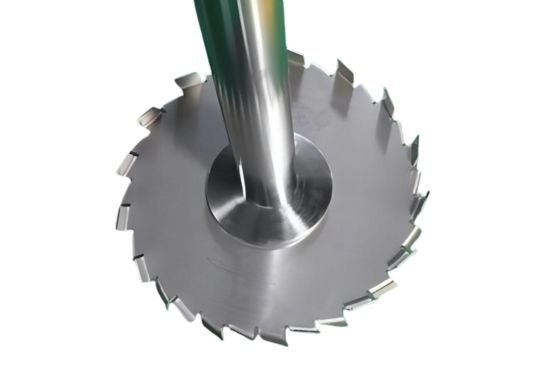

• ◆        High speed disperser uses a fast spinning disc (often with teeth or a spiral shape) to create strong mixing forces. These forces quickly mix solids and liquids evenly, giving you a perfect result.
• ◆        The machine usually has a speed control feature. This lets you adjust the speed based on the material you’re using, so it works well with different thicknesses and mixing needs.
• ◆        You can also add a cooling jacket to the mixing tank. This helps control the temperature during mixing, preventing overheating and keeping the material stable.
• ◆        High Speed disperser is easy to take apart and clean, reducing leftover material. This makes it great for jobs where you need to switch between different materials often.
•

• High Speed Disperser Wide Application
•

• ◆        Coatings: For the production of various types of coatings, especially high viscosity coatings.
• ◆        Inks: For ultra-fine grinding of inks to ensure uniform and stable colors.
• ◆        Pigments and dyes: for the dispersion of pigments and dyes to ensure uniform color distribution.
• ◆        Cosmetics: For dispersion and mixing of cosmetic raw materials.
• ◆        Food: For dispersion and emulsification of food additives.
• ◆        Pharmaceuticals: for dispersion and mixing of pharmaceuticals to ensure uniformity.
•

• Technical Specifications
•

•
• Motor Power:           1.5kw to 200kw  (customizable)
• Speed Range:           0 to 1500 RPM
• Blade Diameter:      2″ to 24″
• Tank Capacity:         10 to 5,000 Liter
• Dimensions:             Varies by model
• Weight :                     Varies by model
• Material:                   Stainless steel, carbon steel
• Control System:      Digital display, variable speed
•

• Data Sheet
•


• Model		GFJ1.5 Model A	GFJ4 Model A	GFJ5.5-7.5(GFJ11) Model A	GFJ22(GFJ30) Model A&B	GFJ37 Model A&B	GFJ45-75 Model A&B	GFJ90-200 Model B
  Motor power (kw)		1.5	4	5.5-7.5(11)	22(30)	37	45-75	90-200
  Speed (r/min)		0~1450	0~1450	0~1450	0~1450	0~1200	0~1200	0~1000
  Diameter (mm)		150	200	250	350	400	450	600
  Lift(mm)		800	800	900	1200	1200~1500	1500~2000	1800~2800
  Pump power (kw)		0.55	0.55	0.75	1.5	1.5	2.2	3
  Capacity (L)		50	200	400~600	600~1000	1000~2000	1000~2500	5000~8000
  Weight (kg)		360	400	800	1500	1700	2100	2600~3000
  External Dimensions (mm)	A	1260	1260	1770	2140	2140	2600	2700
  	B	1340	1300	1700	2260	2260	2800	3000
  	C	600	600	900	1100	1100	1200	1600
  	Wide	460	460	580	800	800	1000	1000

•

• Galley
