• Inline Mixer General Description
• The IWD Inline Mixer is a device for inline suction and rapid dispersion of powders into liquid materials. All process steps can be done with just one machine: dust-free and loss-free feeding of the suction tube/hopper container, rapid powder addition, dosing, wetting and thorough agglomerate-free dispersion mixing.
• The IWD Inline Mixer is a wetting and dispersing machine achieves complete wetting, dispersing and depolymerization of agglomerated powders in one machine without dust or losses, without the need for additional pumps or auxiliary gases. Due to the realization of all dispersing processes in one machine, many reasonable potentials arise. For example, production times are minimized, some of the process steps are reduced, production costs are minimized, and it is more energy efficient and environmentally friendly.
• The basic concept of the IWD inline mixer is not only that the powder is wetted, but above all that it is dispersed under vacuum. Agglomeration is avoided under vacuum, resulting in better dispersion, higher material efficiency and higher product quality.
•

• Inline Mixer - Complete Dispersing and Grinding System
•

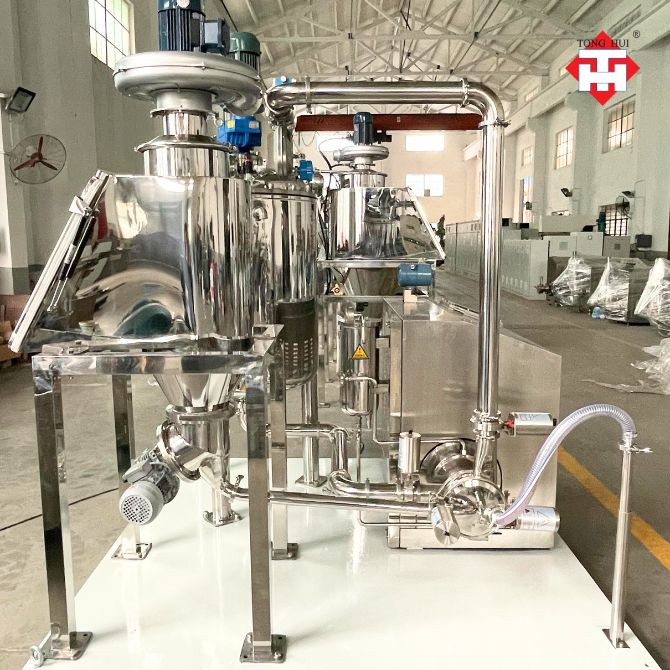

• Inline mixer is not only a single machine,  it is a complete dispersing and grinding system. It include below modules:

• ◆        Powder Dosing and Weighing Station: with powder filter and air suction, which create a dust-free enviroment.
• ◆        Inline Mixer Circulation and Dispersion: Wetting and deagglomerate in one step process in 15min.
• ◆        Bead Mill Grinding and Dispersion: High flow horizontal bead mill ultra grinding for high quality material.
• ◆        Mixing Tank Blending Potting: For extra blending,  or some special solvent mixing.
• ◆        Control Box DCS control: Ex-proof control box option for the whole system for safety opertation.
• ◆        The whole system equip with auto temperature control device and Instant flow detection/display, which can help us to adjust the whole circulation, mixing and control the material quality.
•

• Inline Mixer Working Princple
•

•

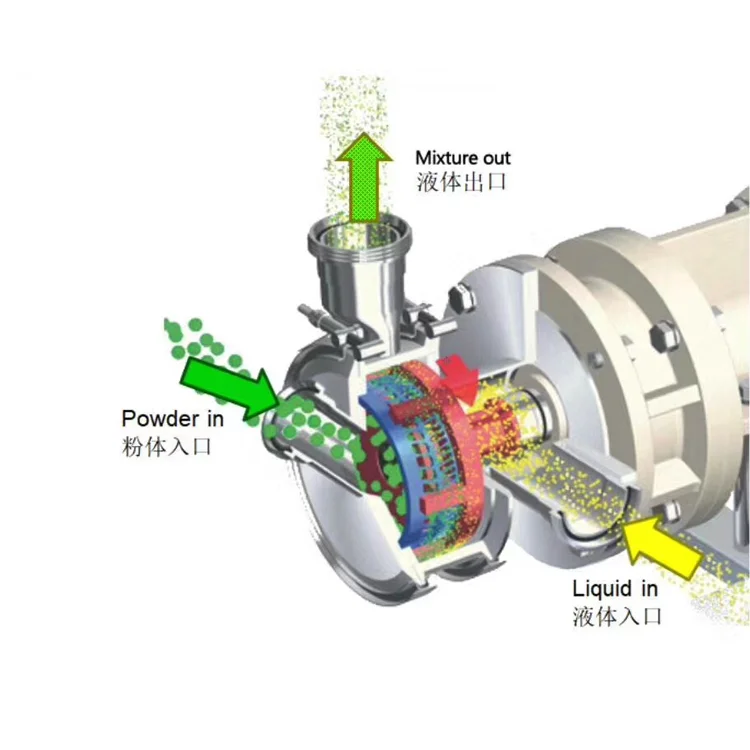

• Inline powder-liquid mixing and dispersing module, with a powder inlet, a liquid-phase inlet, a material outlet, through a special high-shear stator design, stabilizing the liquid-phase flow in the dispersing chamber to form a liquid-ring vacuum, powder inline inhalation of the dispersing chamber and the liquid-phase wetting and mixing of the same time high-shear dispersing, the mixed material returns to the main tank to continue the cycle of homogeneous dispersion, or can be configured with liquid-phase metering and powder metering of the whole Continuous inline powder-liquid mixing and dispersing module can be configured.
•

• The continuous powder-liquid mixing process is highly efficient and reliable, high reproducibility, strong product consistency, and can avoid powder caking, air entry, dust flying and other difficult process problems of the batch process.
•

• Continuous powder-liquid mixing equipment can handle powders up to 75% solids and materials up to 10,000 cps. CIP inline cleaning and SIP inline sterilization can also be realized.
•

• Key Fetature of Tonghui Inline Dispersion Mixer
•

•
•

• ◆        The powder is instantly wetted when it comes into contact with the liquid, completely eliminating this step and saving energy by more than 50%.
• ◆        Dust-free, completely clean production process with no powder loss reduces production costs.
• Improved dispersion results in shorter production times, especially in sand mills.
• ◆        The powder is not only wetted but also optimally dispersed in the vacuum environment, which reduces the amount of dispersant used.
• ◆        The powder is degassed first when it is inhaled, and more air is not introduced, thus reducing the amount of defoamer. The batch size of elastomerization is not limited, and it is easier to clean and change the color.
• ◆        There is no powder sticking or crusting on the machine and the dispersing tank.
•

• Advantage of Tonghui Inline Mixer
•

•
•

• ◆        Vacuum dust-free suction: inline circulating dispersion, reduce environmental pollution.
• High powder suction capacity: up to 200kg/min, suitable for mass production.
• ◆        Controllable fineness: the fineness of treated slurry is usually below 40 microns, depending on the material characteristics.
• ◆        No Powder Dusting: No powder dusting even for difficult to wet, sticky or dusty materials.
• ◆        Direct pickup: The powder can be picked up directly from powder silos, sachets, hoppers, tonnage bags, drums, etc.
• ◆        Dispersion quality improved and 2/3 of milling time reduced
• ◆        Dust free and energy saving more than 50%
• ◆        Much higher capacity per square foot factory space
• ◆        Less powder handling equipment
• ◆        Powder induction, wetting, dispersion and dis-agglomeration in one stage
• ◆        Reduction of production costs, production time, batch changing and higher productivity
• ◆        Reduction of thickeners, defoamers and wetting agents
• ◆        Flexible, variable batch sizes and easy for colour changing
•

•

• Inline Mixer Machine Details
•

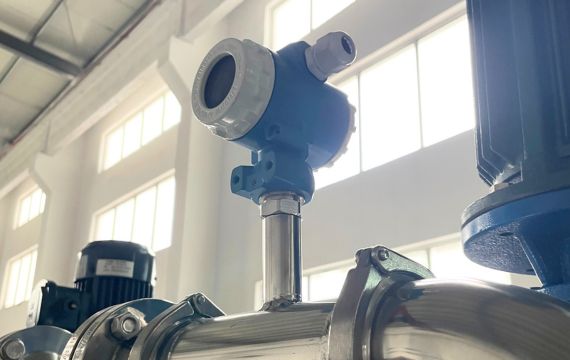

• Temperature Meter Auto control
•

•
•

•

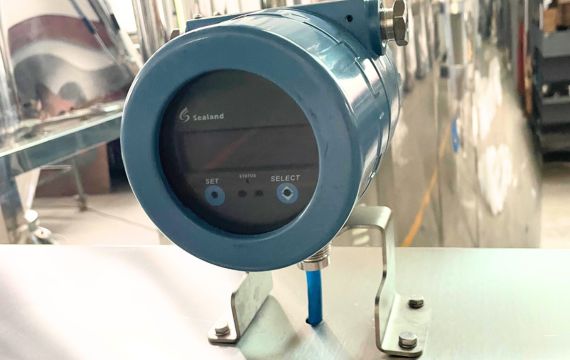

• Flow Meter Inline Detection
•

•
•

•

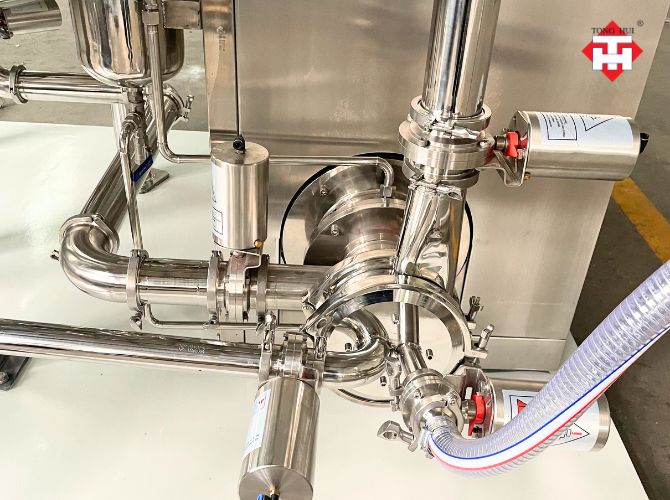

• Air Wind for Suction Powder
•

•
•

•

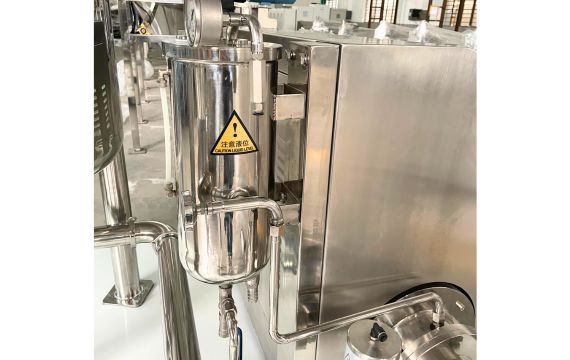

• Balance Vessel for Cooling Seal
•


•

•

•  Data Sheet

• Model	WD20	WD40	IWD60	IWD80	WD100
  Motor power (kw)	7.5~15	30~45	37~55	55~90	90~132
  Max.speed (r/min)	0~5000	0~3600	0~3600	0~3600	0~3600
  Flow during circulation (m³/h)	10~150
  Powder intake (kg/h)	1~20,000(depending on the type of powder used)
  Max.viscosity (mPas)	200,000(depending on size and use of the machine)
  Options	explosion proof execution, certifications
