JCJ Hydraulic Discharging Machine

Price (tax incl.)
Negotiable (Subject to final quotation)
  • MOQ1 Set
  • Trade typeSpot Avail
SKU name Unit price(tax incl.) Stock Quantity
sku-1 Negotiable 1 Set

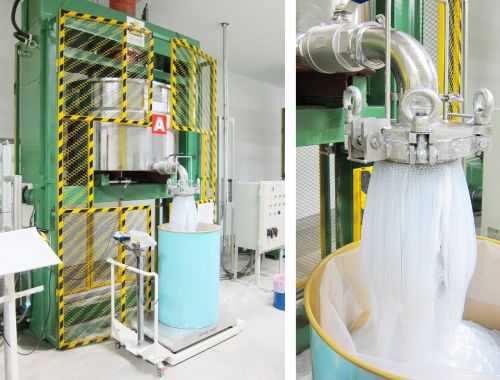

  • The Hydraulic Discharging Machine efficiently unloads materials using hydraulic power, ensuring quick and precise discharge for various industrial applications.
  • Applicable for high viscosity (Putty, gasket cement, offset ink, adhesive) and those slow flowing materials conveying and filling.
  • Also matching with three roller mil, filling machine and pearl milling machine.

  • Key Feature

  • ◆       This machine is equipped with extrusion speed regulating device, which can select the best extrusion speed according to the process requirements.
  • ◆       Equipped with special pulling tank.
  • ◆       The extruding disk adopts automatic inflation and compression expansion, which can keep close contact with the tank wall.
  • ◆       The sealing ring is made of solvent-resistant rubber with long life.
  • ◆       After extrusion, the material inside the tank can be basically extruded cleanly, which greatly reduces the labor intensity.



  • Technical Parameters
  • ModelJCJ-900JCJ-1000JCJ-1100JCJ-1200
    Power(kw)
    Tank diameter(mm)900 1000 1100 1200
    Diameter of pressure pan (mm)900 1000 1100 1200
    Lift(mm)1150 1150 1250 1400
    Control height of installation(mm)4000 4000 4200 4400
