Name: JCJ-M Moible Extruder
SKU: 9471

JCJ-M Moible Extruder

Price (tax incl.)

Negotiable (Subject to final quotation)

SKU name	Unit price(tax incl.)	Stock	Quantity
sku-1	Negotiable	1 Set

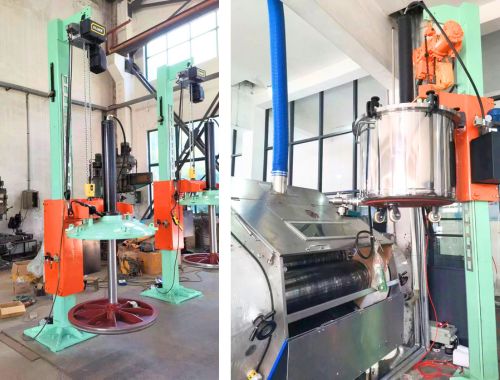

The mobile extruder efficiently processes materials on-site, usually used together with a 3 roll mill, offering flexibility in production and shape formation for various applications.
Applicable for high viscosity such as putty, gasket cement, offset ink, adhesive and those slow flowing materials conveying and filling.
The mobile extruder efficiently processes materials on-site, Usually used in conjunction with a 3 roll mill, offering flexibility in production and shape formation for various applications.
Key Feature

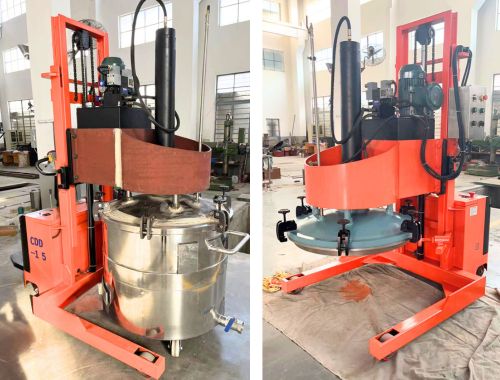

◆ Machine frame specifically designed and manufactured for each tank, in order to make the size as compactas possible.
◆ Bearing column with tank lifting cart from the ground up to a standard height of 900 mm or other greater height
on request.
◆ Bearing column with rotation on its own axis for almost 360°.Electro-hydraulic, and pneumo-hydraulic versions (electric or pneumatic feeding).Standard hydraulic power unit mounted on the press for greater compactness.
◆ Pressing plate with thickness suitable to the diameter and the maximum pressure that can be exerted on theproduct, made of carbon steel, or stainless steel on request.Standard design pressing plate with a pure frustoconical shape, or with lower ring for keeping the gasket always in position and air vent valve, or with a design useful to mount the inflatable seal.
◆ Three sturdy hooks (with manual or pneumatic control depending on the diameter of the press) for attachment to the edge of the tank, with safety system and micro switches for ensuring the correct closure of the bolts and therefore the locking on the tank.
◆ Safety tank presence probe, to make the press operational only in case of actual and correct attachment onthe tank.
◆ Customization on request: colors, construction materials, materials ofthe pressing plate seals, support frameon wheels (so as to be able to move the press above the tank by pushing it manually), etc.
